Name: Blue Aspirations Floating Lidar With Ecosystem Monritong Sensor
Brand: Blue Aspirations
SKU: BA-FLS-NX5
Price: 1500000 USD
Availability: InStock
Rating: 4.7 (147 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Data Transmission: 3G/4G/WIFI/satellite

Power Supply: Solar Panel,Wind Turbine,Battery,fuelcell

Product Name: Floating Lidar With Ecosystem Monritong Sensor

Size: 5*5*9m

Type: Buoy

Weight: 14ton

Highlight:

Blue Aspirations Floating Lidar

Floating Lidar sensor

ecosystem monritong sensor

Basic Infomation

Place of Origin: China

Brand Name: Blue Aspirations

Certification: OWA Stage 2

Model Number: BA-FLS-NX5

Payment & Shipping Terms

Packaging Details: 3 containers

Delivery Time: 2-3month

Payment Terms: T/T

Supply Ability: 3 Units every 2 Months Without pre validation.

Gallery

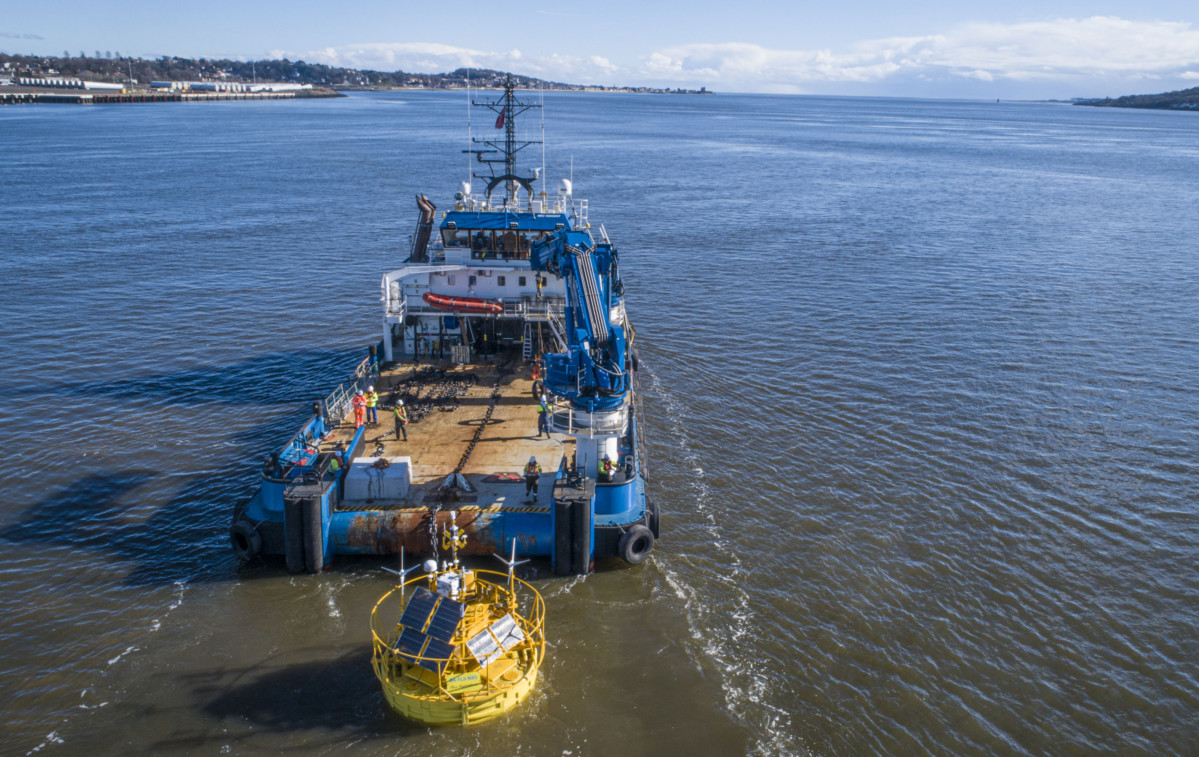

Blue Aspirations Floating Lidar With Ecosystem Monritong Sensor

Product Description

Floating Lidar with ecosystem monritong sensor

1. Floating Platform

The floating platform is comprised of 4 foam blocks contained inside PE casings. The blocks are manufactured through rotational molding, and their modular structure allows the floating Lidar system to be easily disassembled for loading onto a truck or inside a container. This saves time and costs for domestic and international transportation.

2. Technical Details

*Modules*	*Details*
Buoy	-Diameter: 5m -Height: 9m -Weight: 14.5t -Net Buoyancy: 10.5t -Structure: multiple cabinets -Materials: PE, carbon steel, stainless steel
Mooring System	-Water-depth: >5m -Anchor: cement block and/or mooring anchor -Mooring: one-point mooring -Adjustable to suit site-specific requirements including deep water-depth -Multiple mooring system is also available
Control System	-Industrial PLC -or BA's embedded controller
LiDARs	-LiDARs: Dual LiDAR(default) (Windcube offshore version; ZX 300M, Movelaser B300M)
Power Supply	-Battery Capacity: total 60kwh in multiple groups; -Wind Turbines: 2×350W; -Solar Panels: 1600W, multiple groups; - Fuel cells: 2x110W with 224L fuel(optional)
Navigation System	-AIS×1 -Radar reflector×2 -IALA-compliant navigation ligh1×-1 Supporting dual navigation light but Need to meet the requirement of local authority
Positioning System	-Directions: 0-360° -Direction accuracy: 0.09° (2m baseline) -Positioning accuracy: 0.5m (horizontal, SBAS mode)
Motion Sensors	-GNSS-INS sensor×2 or GNSS-INS sensor×1 and MRU sensor×1
Communication Systems	-SAT Modules: Iridium SBD×1, other Broadband SAT data modules (optional); -Mobile Networks: 2G/3G/4G×1; 2.4G/5G Wi-Fi×2; Local Ethernet connection
Data Acquisition	-Dual Industrial PCs -Interfaces: serial×6, Ethernet×2
Hydrological sensors (optional)	-Doppler current sensor -Wave sensor and water depth sensor -Water salinity and temperature sensor

3. Ecosystem monitoring

With the increasing frequency of human activities in the ocean, protecting marine animals has become increasingly important. Our floating LiDAR system can be equipped with relevant recorder for marine birds/bats and mammals monitoring.

A. Birds Monitoring with Acoustic Recorder

There are many ways to monitoring birds in wildlife, SONG METER SM4 acoustic recorder is a proven industry standard wildlife audio recording equipment, specially engineered to deliver quality sound recordings of birds and other vocal animals in the wild.

This birds acoustic recorder provides high quality recordings with maximize detection and fidelity. The SM4 features two second-generation built-in microphones that create high quality recordings of birds and vocalizing animals. The low-noise microphones have a superior signal-to-noise ratio so you capture more wildlife sounds that matter to you. And the device is quite light and small for installation on the floating LiDAR system.

Specifications

Recording technology	Two-channel, 16-bit PCM .wav files or compressed .w4v files
Recording Bandwidth	20Hz - 48kHz
Sample Rates	The recorder supports the following sample rates in samples per second on one or two channels: 8000, 12000, 16000, 22050, 24000, 32000, 44100, 48000, 96000
Built-in Microphones	l Directional Characteristic: Omni-Directional l Sensitivity: -35 dB +/- 4 dB at 1 kHz (0 dB=1 V/Pa) l Signal to Noise Ratio: 80 dB Typ. at 1kHz (1 Pa, A weighted network) l Max Input Sound Level: 122 dB SPL Typ.
Enclosure Environmental Protection	Fully weatherproof
Operating Temperature	-4°F to +185°F or -20°C to 85°C

A. Bats Monitoring with Ultrasonic Recorder

SONG METER SM4BAT FS ultrasonic recorder is the industry-leading bat detector and recorder. It is engineered specially to capture quality ultrasonic bat recording.

Specifications

Recording technology	Single-channel SM4BAT FS: 16-bit PCM .wav files or compressed .w4v files SM4BAT ZC: Zero-Crossing
Sample Rates	Full-Spectrum, single-channel; 192kHz, 256kHz, 384kHz, 500kHz
Enclosure Environmental Protection	Fully weatherproof
Operating Temperature	-4° to 185° F / -20°C to 85°C

A. Ocean mammal monitoring with underwater acoustic acquisition device

Our floating LiDAR can be equipped with an underwater acoustic acquisition device, digital Hyd TP-1. It's designed for real-time streaming of digital data for remote storage, processing, and/or visualization. This device has internal processing capabilities allowing, alternatively, to stream results such as spectral analysis. The TP-1 hydrophone is ideal for integration into monitoring buoys or readily existing systems, or it can be connected directly to a computer.

Features

This digital hydrophone features a pre-amplifier combined with a programmable gain amplifier (PGA) with 7 different gains, for convenient adjustment of the overall sensitivity according to expected incoming signals’ amplitudes. The device is equipped with an analog-to-digital converter with a wide range of selectable sampling rates up to 312500 samples per second at 24 bits. The TP-1 is a telemetry-based hydrophone that features a 10/100 MBit/s ethernet interface, which allows direct connection to a computer, or to a wired or wireless network for real-time data streaming to a client that can handle the acoustic data for storage, processing, and/ or visualization. A power/ ethernet cable for power supply and two-ways communications can be supplied.

The TP-1 digital hydrophone has internal processing capabilities, where FFT based data analysis can be carried

out and results can be made available through a low-speed serial link.

It features various configurations, including selectable sampling frequencies, programmable sensitivity, and acoustic data

processing modes.

Specifications

Sample Frequency	36.3, 67.8, 78.1, 119.8, 180.2, 156.3, 312.5 ksps (selectable)
Sample Resolution	24 bits
Usable Acoustic Band	1 Hz to 150 kHz
Receive sensitivity	-165 to -129 dB re 1 V/uPa at 80 kHz (1x gain)
Programmable Gain Amplifier	1x, 2x, 4x, 8x, 16x, 32x, 64x
Input Sound Pressure Level Range	Up to 200 dB re 1 uPa
Power Suply	12 to 24 VDC
Operation depth	Up to 100 m
Case dimension	60 x 310 mm (diameter x length)
Case Material	Delrin
Weight	0.5 kg (in water), 1 kg (in air)
Operation Temperature Range	0 °C to 40 °C

4 Typhoon Resilience

Despite the risks of building and operating wind farms in locations prone to severe weather, many of China’s offshore wind farms are developed in high-risk areas. Yet typhoons and other extreme events can pose formidable challenges to wind and met ocean measurement campaigns without proper preparation. As the market leader in China, Blue Aspirations’ floating Lidar system is designed to address precisely these challenges. The system integrates backups for all main components, fuel cells to supplement power from solar panels and wind turbines, and a dual-LiDAR setup in its standard configuration. For added protection, its hull also incorporates a large counterweight and residual buoyancy that mitigates the risk of capsizing or sinking. Truly robust typhoon resilience can only come from sturdy structural design, redundant systems design, and diligent operational support.

CHABA TYPHOON CASE STUDY

On July 1st, 2022 Typhoon Chaba passed through a prospective site for offshore wind farm development in the South China Sea. The site was amid a wind measurement campaign using an industry-standard ZX 300M Lidar integrated into a Blue Aspirations FLiDAR.

Typhoon Chaba originated in the south and headed northwest for several days before landfalling in Guangdong province. Chaba brought maximum sustained wind speeds of approximately 140 km/hr, maximum wind gusts of 170 km/hr, and maximum wave heights of 10.67m. Despite these extreme conditions, our unit continued operating effectively – achieving data availability for all measurement heights at 100%, marking the third occasion this floating Lidar system continued to function without issue amidst typhoon conditions.

5. Summary of Validation

We would like to include in this document a summary of the reports from our clients or from third parties nominated by our clients that support our data accuracy and data availability claims.

A summary of the main results is provided below.

Client

Project Name

Buoy and LiDAR Model

Reference

Issuer of the report

Time

Main findings

Blue Aspirations

Carbon Trust

OWA Road map Stage 2 Verification (Dundee, Scotland)

BA-FLS-NX5,

ZX 300M x 1;

Windcube offshore V2 x1

Offshore

Met Mast

Inch Cape

Oldbaum Services from the UK

(3rd-party certifier ).

DNV will review the final report

2023.3 - 2023.9

Interim Stage 2 Assessment Report for Windcube:

Duration: 77days; System availability: 100%

Data availability: >99.2% for all measurement heights

Data accuracy(Wind speed):

>2m/s: R²> 0.991, Slope: 0.995~1.001

4~16m/s: R²> 0.985, Slope: 0.988~1.001

Data accuracy(Wind Direction):

91m: R² >0.998, Slope: 1.003,

101m: R² >0.998, Slope: 1.003,

111m:R²>0.998, Slope: 1.003,

China Three Gorges

Yangjiang,

Guangdong

BA-FLS-NX5,

ZX 300M

Offshore

Met Mast

Blue

Aspirations

2021

Duration: 2 months; System availability: 100%

Data availability: >99.98% for all measurement heights

Data accuracy(Wind speed):

>2m/s: R²> 0.9959, Slope: 0.9964~1.0096

4~16m/s: R²> 0.9921, Slope: 0.9986~1.0122

Data accuracy(Wind Direction):

50m: R2 >0.9987, Slope: 1.0125, Offset:-1.9075

100m: R2 >0.9986, Slope: 1.0198, Offset:-1.4955

China Three Gorges

Yangjiang,

Guangdong

BA-FLS-NX5,

Molas B300M

Offshore

Met Mast

Shanghai

Institute

2022

Duration: 2 months; System availability: 100%

Data availability: >98.5% for all measurement heights

Data accuracy(Wind speed):

>2m/s: R2 > 0.99, Slope: 1.00~1.01

4~16m/s: R2 > 0.99, Slope: 1.00~1.02

Data accuracy(Wind Direction):

R2 > 0.97, Slope: 1.03, Offset: -1.3

Blue Aspirations

Prototype

validation,

Zhoushan, nearshore

BA-FLS-2.4,

ZX 300M

Fixed ZX

300M

DNVGL

2019

Duration: 1 month; System availability: 100%

Data availability: >97% for all measurement heights

Data accuracy(Wind speed):

>2m/s: R2 > 0.994, Slope: 0.994~1.003

Data accuracy(Wind Direction):

R2 > 0.999, Slope: 0.998-1.002,

Offset: -0.83~0.04

Huarun

Cangnan,

Zhejiang

BA-FLS-NX5,

ZX 300M

Offshore

Met Mast

Huarun

2020

Duration: 1 month; System availability: 100%

Data availability: >96.24% for all measurement heights except 120m (Note: 91.31%, several foggy days)

Data accuracy(Wind speed):

>2m/s : R2 > 0.9918, Slope: 0.9889~1.0283

4~16m/s: R2 > 0.9851, Slope: 0.9851~0.9938

Data accuracy(Wind Direction):

R2 > 0.9981, Slope: 0.9826~0.9961, Offset: -0.758~1.4559

Shanghai

Institute

Nanhui,

Shanghai

BA-FLS-NX5,

ZX 300M

Fixed

platform

ZX 300

Blue

Aspirations

2020

Duration: 2 months; System availability: 100%

Data availability: >99.7% for all measurement heights

Data accuracy(Wind speed, >2m/s and 4~16m/s): R2 > 0.97, Slope: 0.98~1.02

Note: the platform LiDAR has a fatal issue with wind direction thus Wind direction is not compared

Power

China

Shantou

BA4.1S,

ZX 300M

2020

Duration: 2 months; System availability: 100%

Data availability: >99.0% for all measurement heights
