Features

Specifications

Measurement Height(range): 10m Or 30m～300m

Measurement Layer: >12

Wind Speed Measurement Range Measurement Accuracy: 0m/s～75m/s

Wind Speed Measurement AccuracyMeasurement Range: 0.1m/s

Wind Direction Measurement Range: 0～360°

Wind Direction Measurement Accuracy: 1°

Data Storage Capacity: >2 Years

Data Transmission: Satellite, 4g,5g, Wifi

Highlight:

Offshore wind measurement

measurement buoy

Dual LiDAR FLS

Basic Infomation

Place of Origin: China

Brand Name: Blue Aspirations

Certification: Carbon Trust OWA Stage 2

Model Number: BA-FLS-NX5

Payment & Shipping Terms

Packaging Details: 2 or 3 containers

Delivery Time: 2 months

Payment Terms: T/T

Supply Ability: 4 units per 2 months without pre validation

Gallery

Offshore Wind Measurement Buoy Dual LiDAR FLS

Product Description

Offshore wind measurement buoy, Dual LiDAR, FLS

Name: Offshore Wind Measurement Buoy Dual LiDAR FLS
Brand: Blue Aspirations
SKU: BA-FLS-NX5
Price: 1.2 USD
Availability: InStock
Rating: 4.9 (126 reviews)

1. Introduction

Blue Aspirations is a remote sensing solutions provider, founded by senior industry professionals to address the needs of the growing offshore wind sector in Asia. Blue Aspirations is a fast growing company with state-of-the-art assembly facilities in China, several patented technologies, active research and development initiatives, and an excellent track record of providing accurate data on time and on budget. Blue Aspirations’ commercial FLS model, the BA-FLS-NX5, is a newly developed system based on proven technologies and design principles that emphasize resilience, accuracy, safety, and reliability. This cutting-edge device has quickly gained recognition in the Chinese offshore wind market - one of the biggest offshore wind markets in the world - and was adopted by three industry-leading Chinese developers for their current projects. To date, the deployed FLSs have achieved a system and data availability above 97% through harsh sea conditions and typhoons, making Blue Aspirations the market leader for reliability and durability.

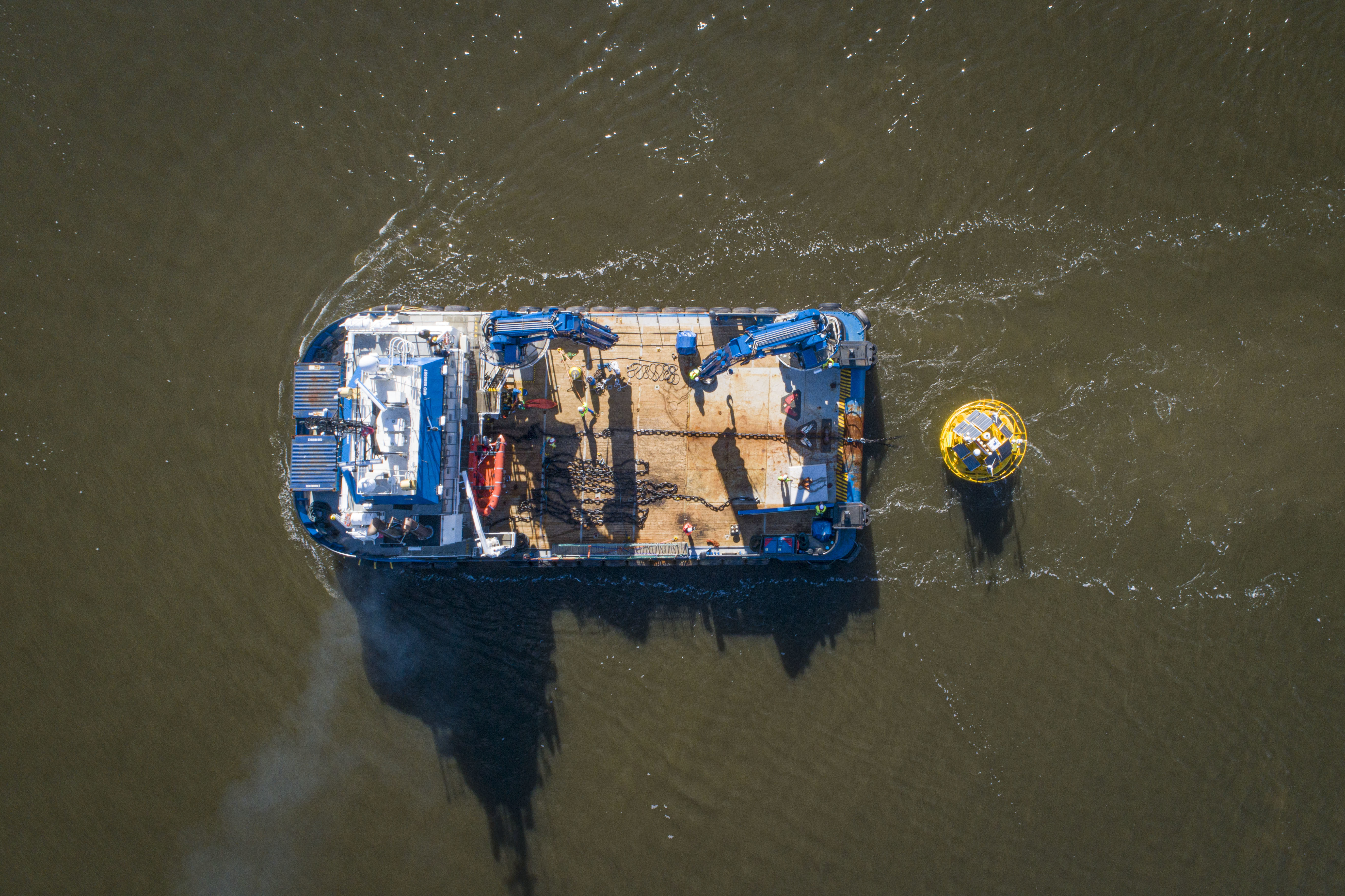

Offshore Wind Measurement Buoy Dual LiDAR FLS 0

2. Floating buoy

Floating Platform The floating platform is comprised of 4 foam blocks contained inside PE casings. The blocks are manufactured through rotational molding and their modular structure allows the floating Lidar system to be easily disassembled for loading onto a truck or inside a container. This saves time and costs for domestic and international transportation.

3. LiDAR specifications

1	Measurement parameters
1.1	Measurement height(range)	10m/30m～300m
1.2	Measurement layer	>12
1.3	Wind speed measurement range	0m/s～75m/s
1.4	Wind speed measurement accuracy	0.1m/s
1.5	Wind direction measurement range	0～360°
1.6	Wind direction measurement accuracy	1°
1.7	Data storage capacity	>5 years
1.8	Data transmission	Satellite, 4g, wifi
2	Working Condition
2.1	Powered Supply	24V DC,90~270V AC
2.2	Power Consumption	60W
2.3	Working humidity range	0% to 100%
2.4	Range of working temperature	-40℃ ~ 50℃
2.5	Protection level	IP67
2.6	Eye safety	Class 1M(EN60825-1)
3	Certificate	DNV-GL/DTU/WINDGUARD/ETL/CE/

4. Markings, Navigational Aid, Positioning, and Alarm Systems

Blue Aspirations’ floating LiDAR system is equipped with:

· Yellow marine paint;

· Yellow X marking cross;

· Yellow light beacons with pulse frequency specific to an ocean data acquisition system buoy;

· Automatic Identification System;

· Radar reflector; and

· All additional marking and navigational aids as required by local regulations.

Below is a typical configuration, however each system is adapted to address local requirements.

Navigation Lights

Range:5NM

Cross
